Sale

FG10N.3

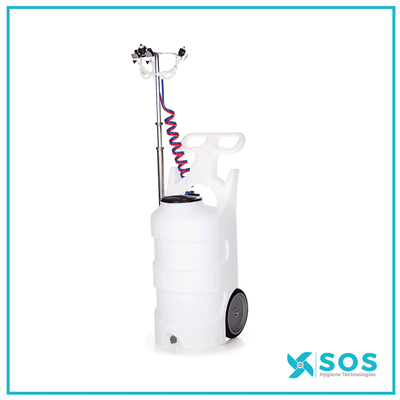

FG10N.3 DEMA MOBILE TELESCOPIC FOGGING SYSTEM 40 LITRE

£2,157.25 Exc. VAT £2,889.64 You Save 25% (£732.39 exc. VAT)

£2,588.70 inc. VAT £3,467.57 You Save 30.0% (£878.87 inc. VAT)

Portable fogging / misting, ideal for tall spaces.

Draws from pre-mixed solution
Powered by compressed air
3 nozzles mounted on a telescoping mast
- Droplet size: 15 microns at 50 psi (3.4 bar)
- Polypropylene and Kynar nozzle construction
A full tank of solution will supply the unit for approximately 1 hour
Optional timer with delay functionality – start unit and leave the room before it begins fogging / misting
Hinged back plate provides tool-free access to components
Quick-change pump
Natural colour tank for easy visibility of product levels
Hinged lid
Colour coding options:
- Lid – 7 colours (BK, BL, GN, YL, RD, PL, OR)
Front-facing drain
In-line strainer to protect pump from debris

Please note: There is a 7 - 10 days delivery on all Dema products.

Scroll down for more information.

Specifications

COMPRESSED AIR	50 psi (3.4 bar) with 9 cfm (254.9 l/min)
LIQUID TEMPERATURE RANGE	40-100˚F (4.4-37˚C)
CHEMICAL COMPATIBILITY	Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

POWER TYPE	Compressed air
CHEMICAL PICKUP TYPE	Draws from pre-mixed solution
NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME)	One product
SUCTION LINE LENGTH/DIAMETER	3/8 in. (9.5 mm) inside diameter
CAPACITY	12.5 gallons (47.32 liters)
FLOW RATE*	3.7 gal/hour (14 l/hour) at each nozzle
PUMP SEALS	Santoprene, Viton, or Kalrez
DROPLET SIZE	15 microns at 50 psi (3.4 bar)
COVERAGE AREA**	1 liter of solution will cover approximately 1000 cubic feet (28.3 cubic meters), up to system max of 47,320 cubic feet (1340 cubic meters)
RUN TIME FROM FULL TANK**	Approx. 1 hour
NUMBER OF NOZZLES	3 nozzles
FOG MAST HEIGHT RANGE	3.5-8.5 ft. (1.1-2.6 m)
WHEEL TYPE	Two 10 inch (25.4 cm) non-marking wheels

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.

**Area covered and run time may vary based on humidity, air flow, and product used.

Add bold option codes to item number as shown. For standard options, no option code is needed. Examples:

Other available options:
