FI-WALL-SS-E

FI-WALL-SS-E DEMA WALL MOUNTED PREMIX FOAMER

  • Draws from pre-mixed solution
  • Powered by compressed air
  • Stainless steel ball valve and wand
  • Stainless steel fluid fittings
  • Quick-change pump

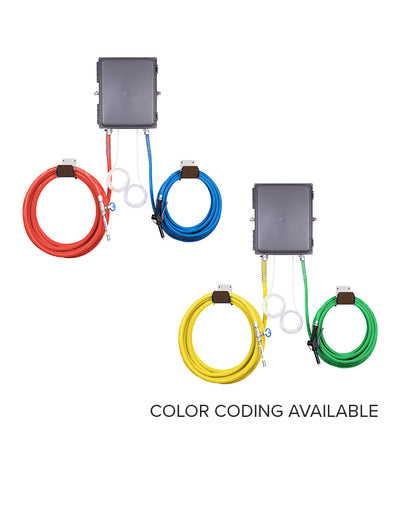

  • Colour coding options:
    • Discharge hose – 4 colours (BL, GN, YL, RD)
Scroll down for more information.

Specifications

Downloads

Videos

COMPRESSED AIR REQUIREMENTS40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)
LIQUID TEMPERATURE RANGE40-100˚F (4.4-37˚C)
CHEMICAL COMPATIBILITYChemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
POWER TYPECompressed air
CHEMICAL PICKUP TYPEDraws from pre-mixed solution
NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME)One product
SUCTION LINE LENGTH/DIAMETER8 ft. (2.4 m) hose with 3/8 in. (9.5 mm) inside diameter)
DISCHARGE HOSE DIAMETER/LENGTH50 ft. (15 m) hose, with 3/4 in. (19 mm) inside diameter)
DISCHARGE WAND/TIP TYPE7 in. (17.8 cm) stainless steel wand with zero tip and ball valve
OUTPUT DISTANCE25-30 ft. (7-9 m)
OUTPUT VOLUME20-45 gal/min (75-170 l/min) of foam
FLOW RATE*2 gal/min (7.6 l/min)
PUMP SEALSSantoprene, Viton, or Kalrez

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
