FI-CN-15NE

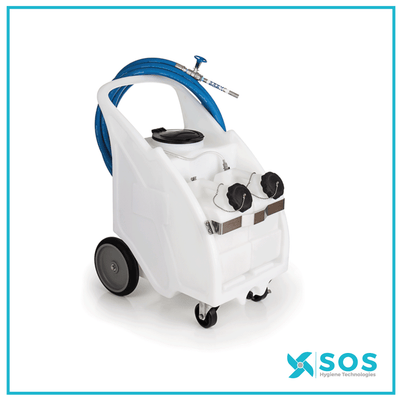

FI.CN.15N DEMA CONCENTRATE FOAM UNIT WITH ON BOARD DOSING - 60L

FI.CN.15N

DEMA 60 Litres Concentrate Foam Unit with on board mixing.

It comes as:

  • FI-CN-15N (standard unit with Santoprene pump seals)
  • FI-CN-15NV (unit with Viton pump seals) for use with oxidising agents.
Please note: There is a 7 - 10 days delivery on all Dema products.
    Scroll down for more information.
    Enquire View Full Details & Make An Enquiry

    Further Information

    Specifications

    Downloads

    Videos

    • Draws from concentrated product
    • Powered by compressed air
    • Dilutes at ratios of 14:1 to 320:1
    • Holds one standard 5 Gallon bucket (chemical jugs/bucket not included)
    • Onboard water tank – 15 Gallon (56.8 litre) capacity
    • Hinged back plate provides tool-free access to components
    • Quick-change pump
    • Hinged lid
    • Anti-kink hose protection
    • Natural colour tank for easy visibility of water levels
    • Integrated hose wraps
    • Front-facing drain
    • In-line strainer to protect pump from debris



    COMPRESSED AIR

    40-80 psi (3-5 bar) with 5-10 cfm (141-283 l/min)

    LIQUID TEMPERATURE RANGE

    40-100˚F (4.4-37˚C)

    CHEMICAL COMPATIBILITY

    Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.

    POWER TYPE

    Compressed air

    CHEMICAL PICKUP TYPE

    Draws from concentrated product

    DILUTION RATIO RANGE*

    14:1 to 320:1

    NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME)

    One product

    SUCTION LINE LENGTH/DIAMETER

    8 ft. (2.4 m) clear hose with 1/4 in. (6.4 mm) inside diameter

    CAPACITY

    15 gallons (56.78 Litres) of water; Up to 10 gallons (37.85 Litres) of concentrate

    DISCHARGE HOSE DIAMETER/LENGTH

    30 ft. (9 m) hose, with 3/4 in. (19 mm) inside diameter

    DISCHARGE WAND/TIP TYPE

    7 in. (17.8 cm) stainless steel wand with zero tip and ball valve

    OUTPUT DISTANCE

    25-30 ft. (7-9 m)

    OUTPUT VOLUME

    20-45 gal/min (75-170 l/min) of foam

    FLOW RATE*

    2 gal/min (7.6 l/min)

    PUMP SEALS

    Santoprene or Viton

    WHEEL TYPE

    2 x 10” non-marking wheels
     2 x 5” casters with lock


    *Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
